Chapter 14
Solutions and Their Physical Properties


Movie
Title
 Movie
Caption
 The effect of temperature on the vapor pressure of a liquid is illustrated.
Notes
 Vapor pressure vs temperature. A liquid in a closed container exerts a vapor pressure due to molecules that have escaped into the liquid phase. At equilibrium equal numbers of molecules leave and reenter the liquid phase. As the temperature is increased the average kinetic energy of the molecules increases. The higher kinetic energy of the liquid allows more molecules to escape, resulting in an increase in vapor pressure with increasing temperature.
Movie
Title
 Movie
Caption
 Dissolution of NaCl in aqueous solution
Notes
 Dissolution of NaCl in water. When an ionic substance dissolves in water the ions are solvated by water molecules. The hydrogen atoms of the water molecule, which have a partial positive charge, interact with the chloride ion. The oxygen atom of the water molecule, which has a partial negative charge, interacts with the sodium ion. Each ion is surrounded by several water molecules.
Movie
Title
 Movie
Caption

Notes
 Mixtures and compounds
Movie
Title
 Movie
Caption
 Mixtures and compounds
Notes
 Mixtures and compounds
Movie
Title
 Movie
Caption
 Removal of water from sugar by H2SO4
Notes
 Dehydration of sugar. The formula of table sugar is C12H22O11. Sugars were originally named carbohydrates (hydrates of carbon) because they have a ratio of H to O of 2:1. When H2SO4 is added to sugar, the sugar is converted to H2O and solid C. The reaction is exothermic so the water is converted to steam. A column of solid C rises out of the beaker during the reaction.
Movie
Title
 Movie
Caption
 A solution of CuSO4 is prepared starting with solid CuSO4.
Notes
 Solution formation from a solid. A calculated amount of solid CuSO4 is weighed out and added to a volumetric flask. Some water is added and the flask is shaken to dissolve the solid. Once the CuSO4 has dissolved, enough water is added to make the volume exactly 250. mL. It should be pointed out that the volume of the solution may change as the CuSO4 dissolves so it must be completely dissolved before filling the volumetric flask to the mark.
Movie
Title
 Movie
Caption
 Preparation of a dilute CuSO4 solution from a concentrated solution of CuSO4 is illustrated.
Notes
 Solution formation by dilution. A dilute solution of known concentration can be prepared from a more concentrated solution of known concentration. The volume of the concentrated solution required can be calculated using the equation Mi X Vi = Mf X Vf. The volume of the concentrated solution is measured with a pipet and transferred to a volumetric flask. Water is added, the solution is mixed, and more water is added to give the required volume.
Movie
Title
 Movie
Caption
 Effect of pressure on the solubility of a gas
Notes
 Henry's law. The solubility of a gas in a liquid is proportional to the pressure of the gas over the liquid. Since volume and pressure are inversely proportional, decreasing the volume of the gas over the liquid increases its pressure. This causes more gas molecules to enter the liquid phase, resulting in an increased solubility. The relationship between the solubility of a gas and its partial pressure is given by Henry's law.
Movie
Title
 Movie
Caption
 Effect of pressure on the solubility of a gas
Notes
 Henry's law. The solubility of a gas in a liquid is proportional to the pressure of the gas over the liquid. Since volume and pressure are inversely proportional, decreasing the volume of the gas over the liquid increases its pressure. This causes more gas molecules to enter the liquid phase, resulting in an increased solubility. The relationship between the solubility of a gas and its partial pressure is given by Henry's law.
Movie
Title
 Movie
Caption
 Changes of state
Notes
 Changes of state. As a solid is heated its temperature increases until its melting point is reached. At the melting point heat is used to convert the solid to a liquid at constant temperature. In the liquid state the temperatureincreases with added heat. At the boiling point the heat is used to convert the liquid to vapor at constant temperature. When the substance has vaporized, added heat causes the temperature of the vapor to increase.
Movie
Title
 Movie
Caption
 Mobile ions are conductors of electricity
Notes
 Electrolytes and non-electrolytes. In NaCl crystals the ions which are held in place by interactions between ions in the crystal lattice and cannot move in an electrical field. When NaCl is dissolved in water the water associates with the ions and separates them, allowing them to move freely in the solution. These mobile ions are good conductors of electricity. An aqueous solution of a nonelectrolyte such as sugar which contains no ions does not conduct electricity.
14.1
Title
 13-1
Caption

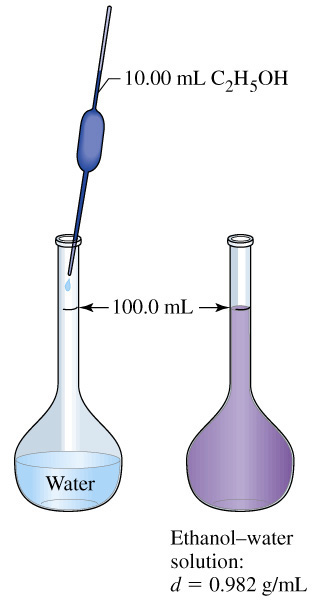

 Preparation of an ethanol-water solution-Example 14-1 illustrated. A 10.00-mL sample of C2H5OH is added to some water in the volumetric flask. The solution is mixed and more water added to bring the total volume to 100.0 mL.
Notes

14.2
Title
 13-2
Caption

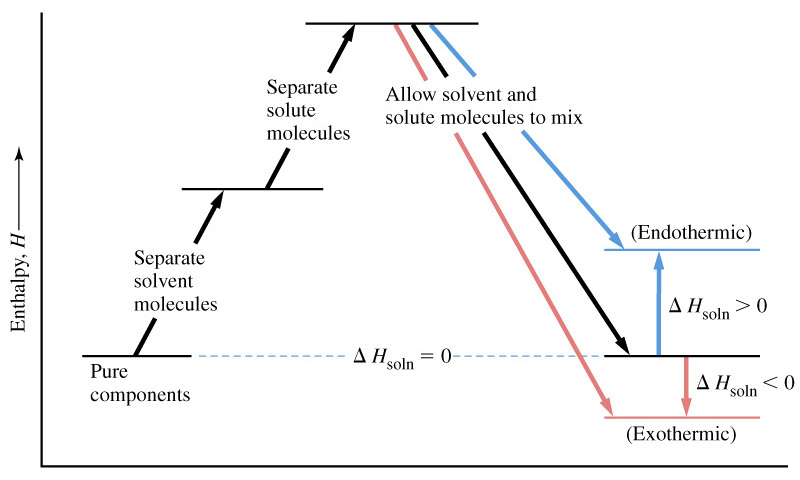

 Enthalpy diagram for solution formation. Depending on whether the broken arrow ends above, below, or on the line, the solution process is endothermic, exothermic, or has DHsoln 5 0, respectively.
Notes

14.3
Title
 13-3
Caption

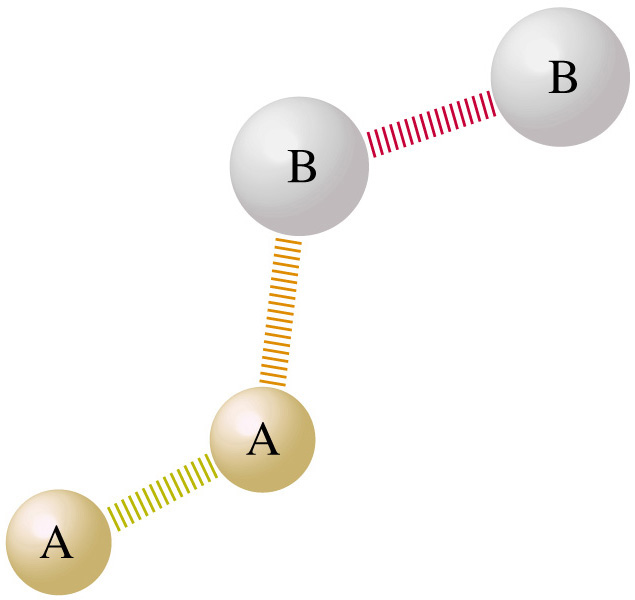

 Representing intermolecular forces in a solution. The intermolecular forces of attraction represented here are between: (1) solvent molecules A (fn), (2) solute molecules B (fn), and (3) solvent A and solute B (fn).
Notes

14.4
Title
 13-4
Caption

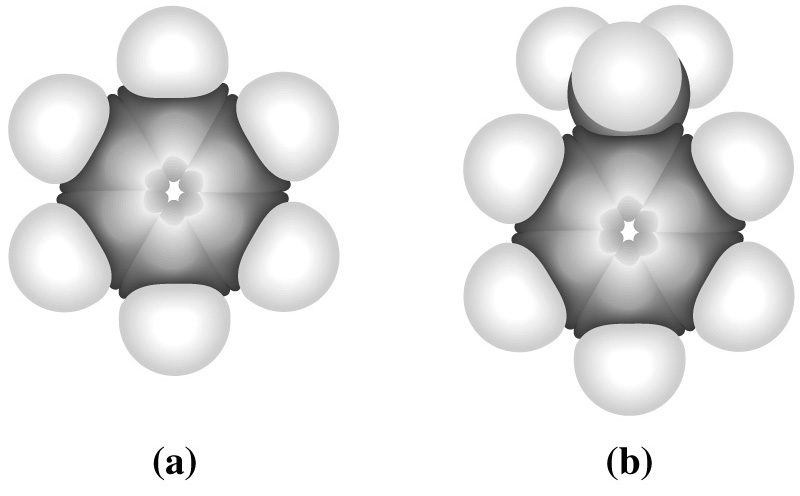

 Two components of an ideal solution. Think of the OCH3 group in toluene (b) as a small “bump” on the planar benzene ring (a). Substances with similar molecular structures have similar intermolecular forces of attraction.
Notes

14.5B
Title
 13-5
Caption

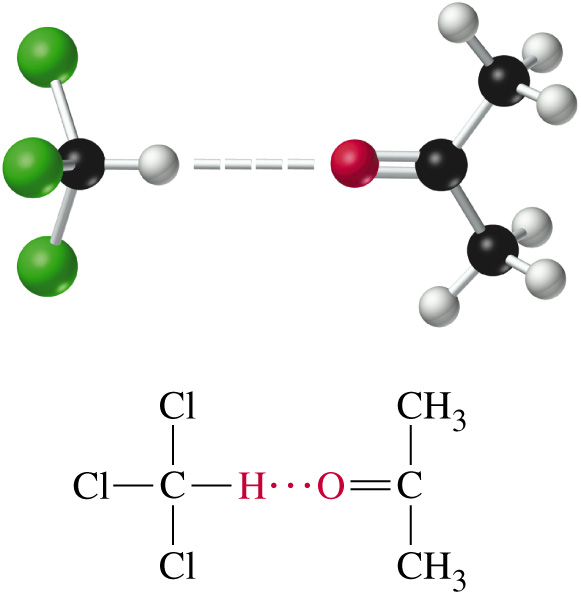

 Intermolecular force between unlike molecules leading to a nonideal solution. Hydrogen bonding between CHCl3 (chloroform) and (CH3)2CO (acetone) molecules produces forces of attraction between unlike molecules that exceed those between like molecules.
Notes

14.6
Title
 13-6
Caption

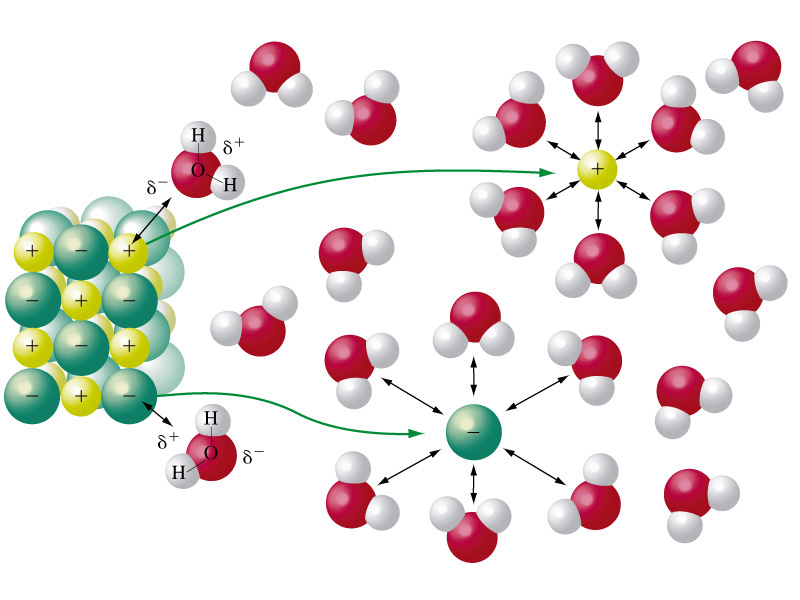

 An ionic crystal dissolving in water. Clustering of water dipoles around the surface of the ionic crystal and the formation of hydrated ions in solution are the key factors in the dissolving process.
Notes

14.7
Title
 13-7
Caption

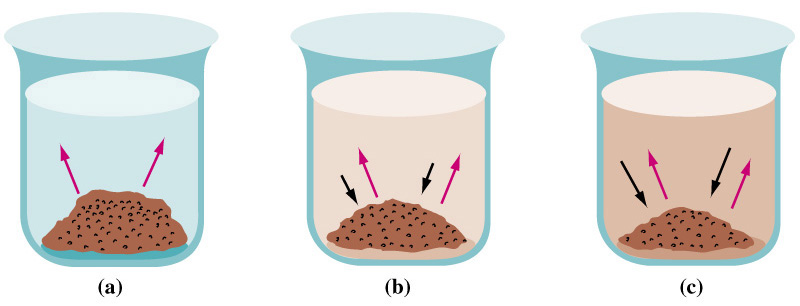

 Formation of a saturated solution. The lengths of the arrows represent the rate of dissolving (h) and the rate of crystallization (g). (a) When solute is first placed in the solvent only dissolving occurs. (b) After a time the rate of crystallization becomes significant. (c) The solution becomes saturated when the rates of dissolving and crystallization become equal.
Notes

14.8
Title
 13-8
Caption

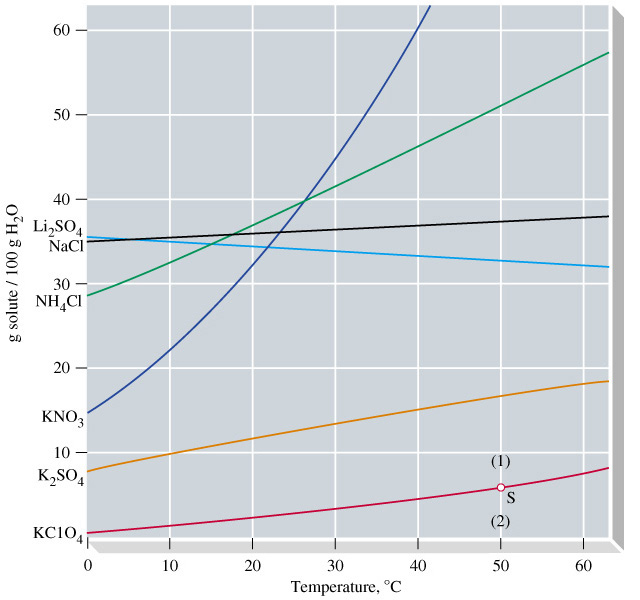

 Water solubility of several salts as a function of temperature. Solubilities can be expressed in many ways: as molarities, as mass percent, or, as in this figure, grams of solute per 100 g H2O. For each solubility curve (as shown here for KClO4) points on the curve (S) represent saturated solutions. Regions above the curve (1) correspond to supersaturated solutions and below the curve (2), to unsaturated solutions.
Notes

14.9
Title
 13-9
Caption

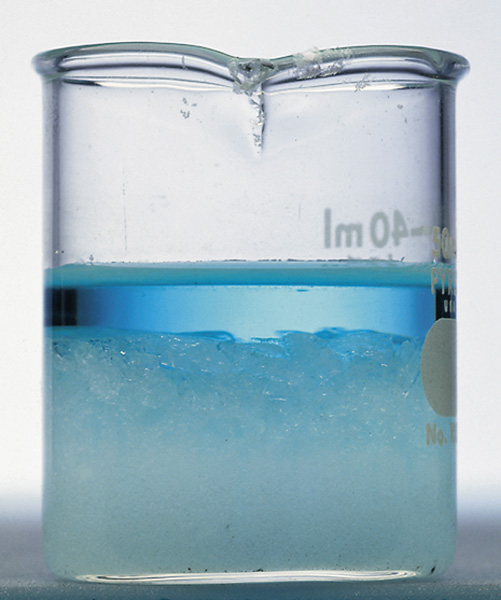

 Recrystallization of KNO3. Crystals of KNO3 separated from an aqueous solution of KNO3 and CuSO4 (an impurity). The pale blue color of the solution is produced by Cu21, which remains in solution
Notes

14.10
Title
 13-10
Caption

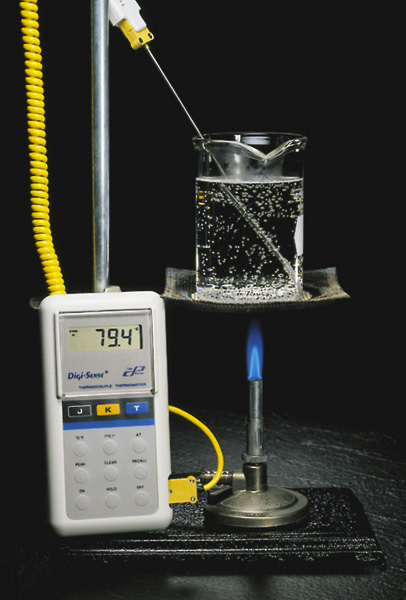

 Effect of temperature on the solubilities of gases. Dissolved air is released as water is heated, even at temperatures well below the boiling point.
Notes

14.11
Title
 13-11
Caption

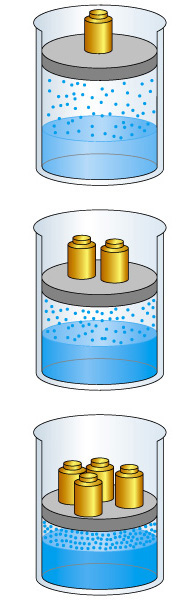

 Effect of pressure on the solubility of a gas. The concentration of dissolved gas (suggested by the depth of color) is proportional to the pressure of the gas above the solution (suggested by the density of the dots).
Notes

14.12
Title
 13-12
Caption

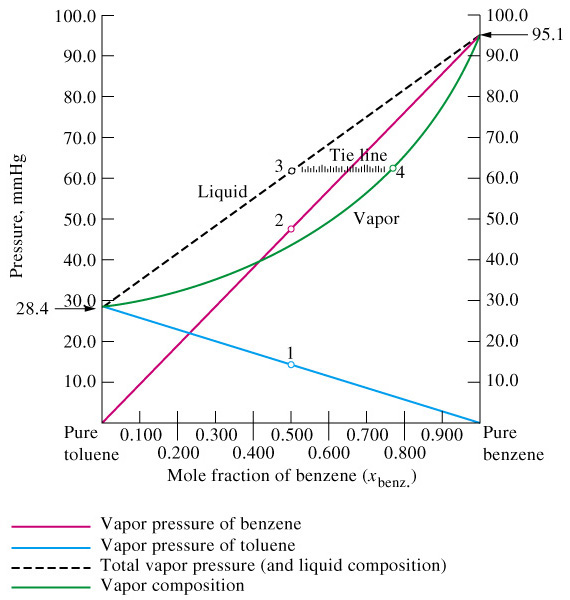

 Liquid-vapor equilibrium for benzene-toluene mixtures at 25 °C.
Notes

14.3
Title
 13-13
Caption

Notes

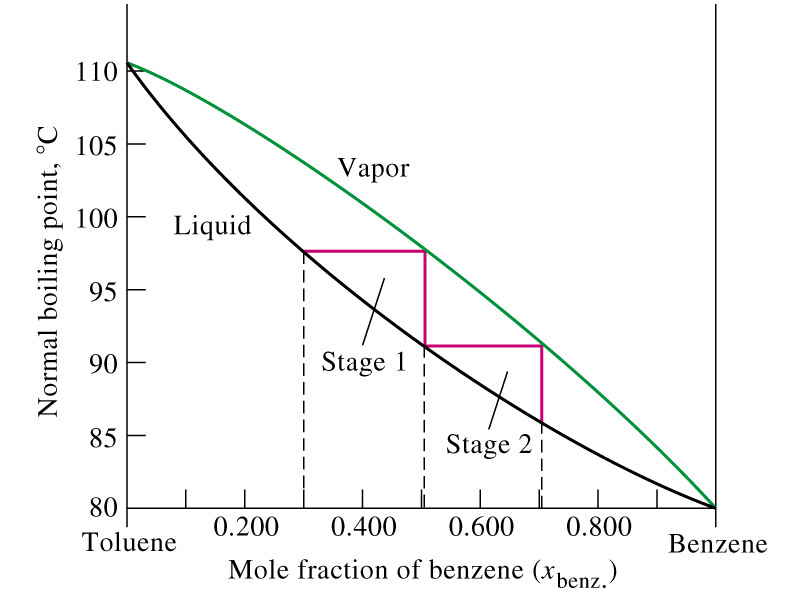

 Liquid-vapor equilibrium for benzene-toluent mixtures at 1 atm
14.14.1UN
Title
 P 553
Caption

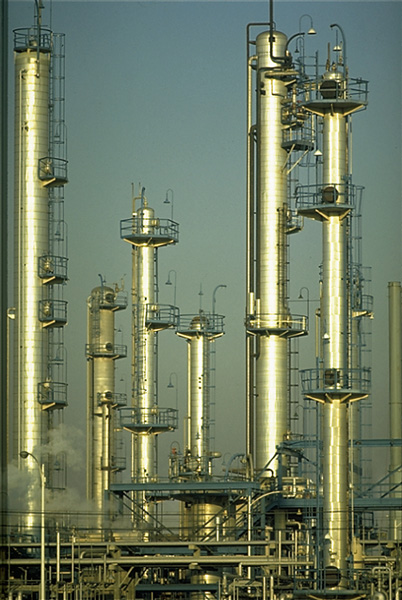

 oil refinery distillation (orig. 14.14.02.UN)
Notes
 Fractional distillation
14.15
Title
 13-15
Caption

Notes

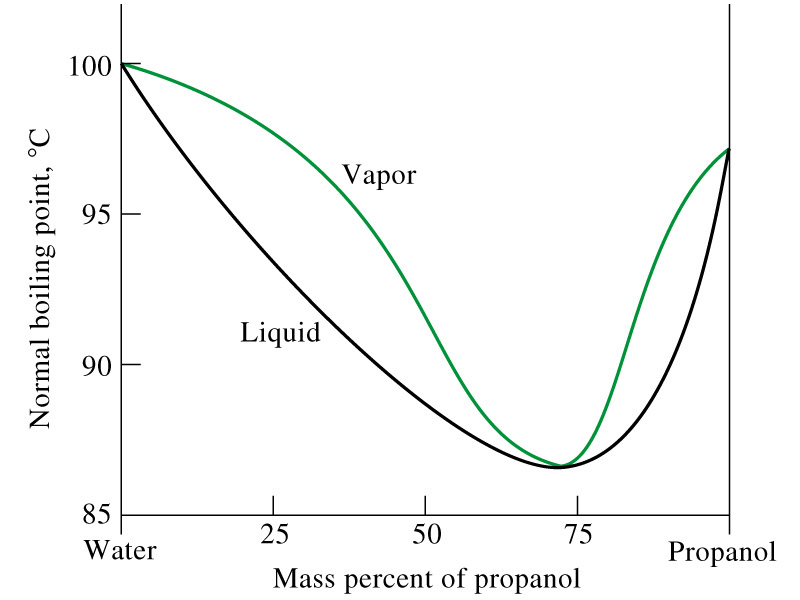

 A minimum boiling point azeotrope
14.16
Title
 13-16
Caption

Notes

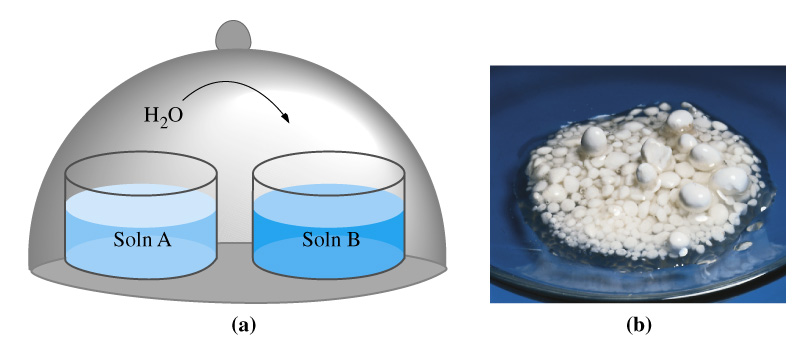

 Observing the direction of flow of water vapor
14.17L
Title
 13-17
Caption

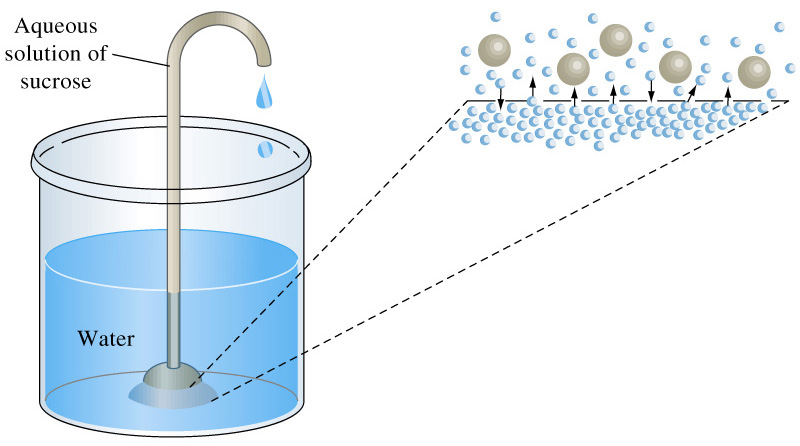

 An illustration of osmosis
Notes

14.18
Title
 13-18
Caption

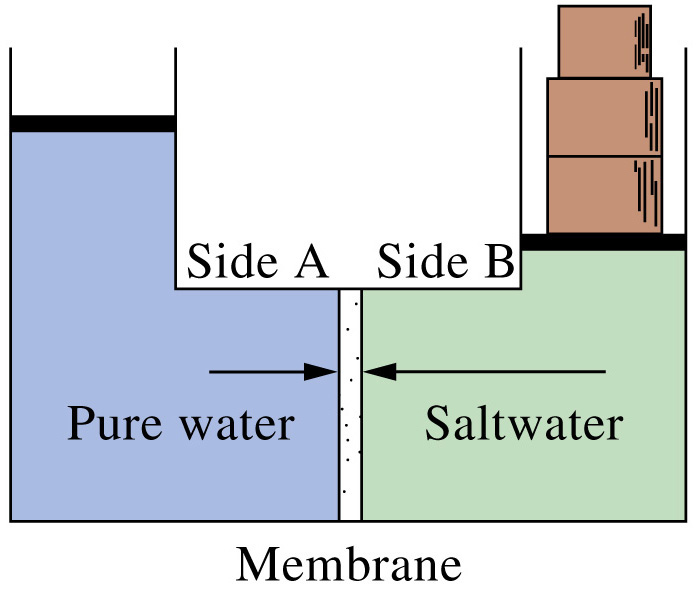

 Desalination of saltwater by reverse osmosis. The membrane is permeable to water but not to ions. The normal flow of water is from side A to side B. If we exert a pressure on side B that exceeds the osmotic pressure of the saltwater, a net flow of water occurs in the reverse direction-from the saltwater to the pure water. The lengths of the arrows suggest the magnitudes of the flow of water molecules in each direction
Notes

14.19
Title
 13-19
Caption

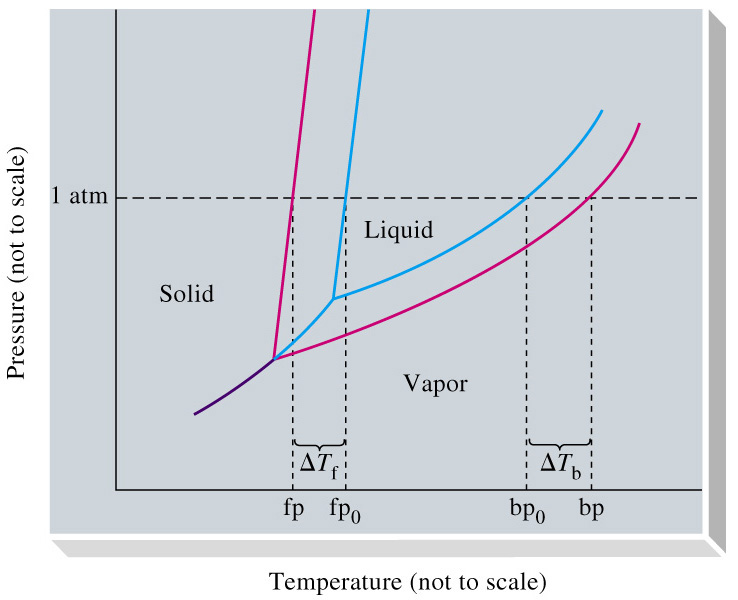

 Vapor pressure lowering by a nonvolatile solute. The normal freezing point and normal boiling point of the pure solvent are fp0 and bp0, respectively. The corresponding points for the solution are fp and bp. The freezing point depression, DTf, and the boiling point elevation, DTb, are indicated. Because the solute is assumed to be insoluble in the solid solvent, the sublimation curve of the solvent is unaffected by the presence of solute in the liquid solution phase. That is, the curve is the same for the two phase diagrams
Notes

14.19.4UN
Title
 P 561
Caption

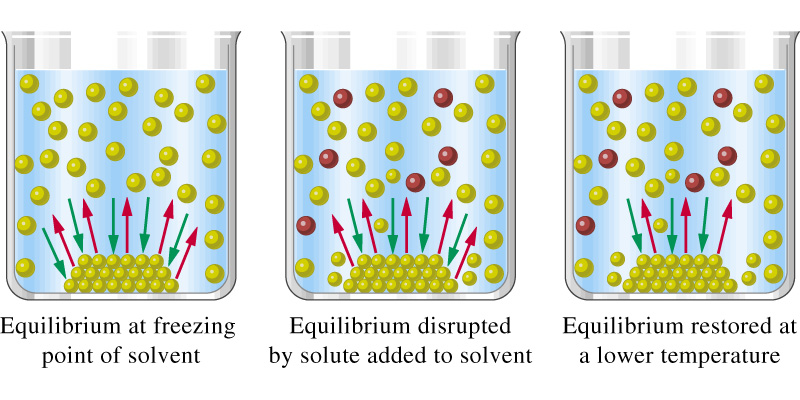

 Dynamic equilibrium and solute disrupts equilibrium diagrams
Notes

14.19.5UN
Title
 P 562
Caption
 Svante Arrhenius (1859-1927)
Notes

14.20a,b
Title
 13-20
Caption

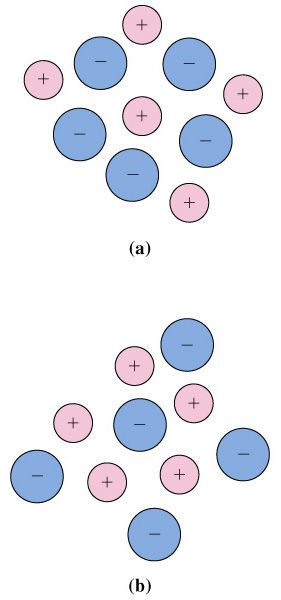

 Interionic attractions in aqueous solution. (a) A positive ion in aqueous solution is surrounded by a shell of negative ions. (b) A negative ion attracts positive ions to its immediate surroundings
Notes

14.21
Title
 13-21
Caption

Notes
 The Thndall effect
14.22
Title
 13-22
Caption

Notes

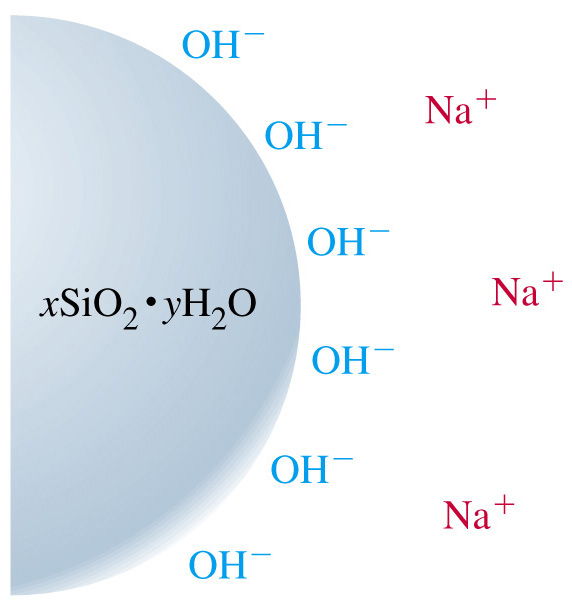

 Surface of SiO2 particle in colloidal sil
14.23
Title
 13-23
Caption
 Coagulation of colloidal iron oxide
Notes

14.24
Title
 13-24
Caption

Notes

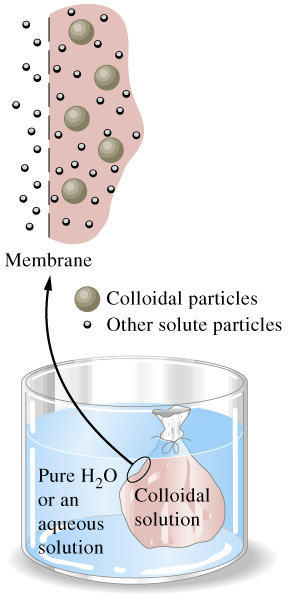

 The principle of dialysis
14.24.1UN
Title
 P 566
Caption
 Patient hooked up to a dialysis machine
Notes

14-25
Title
 13-25
Caption

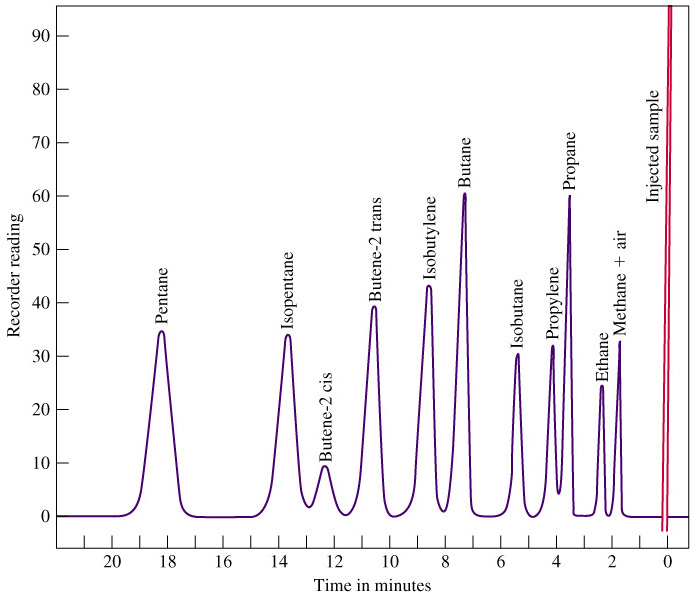

 Graph showing a typical gas chromatogram with recorder reading vs time in minutes
Notes

P 560
Title
 P 560
Caption

Notes

P 628-3
Title
 P 628-3
Caption

Notes
 Solution Formation from a solid
P 825-3a
Title
 P 825-3a
Caption

Notes
 Electrolytes and non-electrolytes
P 542
Title
 P 542
Caption

Notes

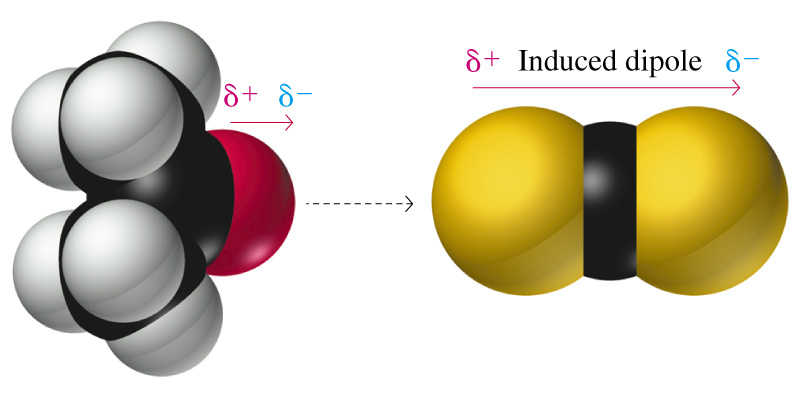

 Inducing a dipole
P 560
Title
 P 560
Caption

Notes
 Water sprayed on citurs fruit
P 560
Title
 P 560
Caption

Notes
 Lowering the freezing point of water on roads
P 568
Title
 P 568
Caption

Notes
 A chromatograph in use in a laboratory
Table 14.1
Title
 Table 14.1
Caption

Notes
 Some common solutions
Table 14.2
Title
 Table 14.2
Caption

Notes
 Freezing-point depression and boiling-point elevation constants
Table 14.3
Title
 Table 14.3
Caption

Notes
 Variation of the van't Hoff Factor, I, with Solution molality
