Chapter 16
Principles of Chemical Equilibrium


Movie
Title
 movie
Caption
 The temperature dependent equilibrium of NO2 with N2O4 is demonstrated.
Notes
 NO2--N2O4 equilibrium. The red-brown gas NO2 exists in equilibrium with colorless N2O4. When a tube containing the equilibrium mixture is put into hot water, the equilibrium is shifted in the direction of NO2 so more of the reddish-brown gas is present. As the temperature is decreased the equilibrium shifts in favor of colorless N2O4. The color fades when the tube is placed in an ice bath and NO2 is converted to N2O4.
Movie
Title
 movie
Caption
 A solution of CuSO4 is prepared starting with solid CuSO4.
Notes
 A calculated amount of solid CuSO4 is weighed out and added to a volumetric flask. Some water is added and the flask is shaken to dissolve the solid. Once the CuSO4 has dissolved, enough water is added to make the volume exactly 250. mL. It should be pointed out that the volume of the solution may change as the CuSO4 dissolves so it must be completely dissolved before filling the volumetric flask to the mark.
Movie
Title
 movie
Caption
 Dissolution of NaCl in aqueous solution.
Notes
 When an ionic substance dissolves in water the ions are solvated by water molecules. The hydrogen atoms of the water molecule, which have a partial positive charge, interact with the chloride ion. The oxygen atom of the water molecule, which has a partial negative charge, interacts with the sodium ion. Each ion is surrounded by several water molecules.
Movie
Title
 movie
Caption

Notes
 Le Chatelier's Principle
Movie
Title
 movie
Caption
 Temperature dependent equilibrium between NO2 and N2O4
Notes
 In a closed container the reddish-brown gas NO2 is in equilibrium with the colorless gas N2O4. According to Le Chatelier's principle when the temperature of an equilibrium system is increased at constant volume the equilibrium shifts in the direction that absorbs heat. Since the conversion of 2NO2 to N2O4 is an exothermic reaction, the equilibrium shifts in favor of NO2 when the temperature is increased from 373 K to 473 K.
Movie
Title
 movie
Caption
 Removal of water from sugar by H2SO4
Notes
 The formula of table sugar is C12H22O11. Sugars were originally named carbohydrates (hydrates of carbon) because they have a ratio of H to O of 2:1. When H2SO4 is added to sugar, the sugar is converted to H2O and solid C. The reaction is exothermic so the water is converted to steam. A column of solid C rises out of the beaker during the reaction.
Movie
Title
 movie
Caption
 The temperature dependent equilibrium of NO2 with N2O4 is demonstrated.
Notes
 NO2--N2O4 equilibrium. The red-brown gas NO2 exists in equilibrium with colorless N2O4. When a tube containing the equilibrium mixture is put into hot water, the equilibrium is shifted in the direction of NO2 so more of the reddish-brown gas is present. As the temperature is decreased the equilibrium shifts in favor of colorless N2O4. The color fades when the tube is placed in an ice bath and NO2 is converted to N2O4.
16.1
Title
 16-2
Caption

Notes
 Dynamic equilibrium in a physical process.
16.3
Title
 16-3
Caption

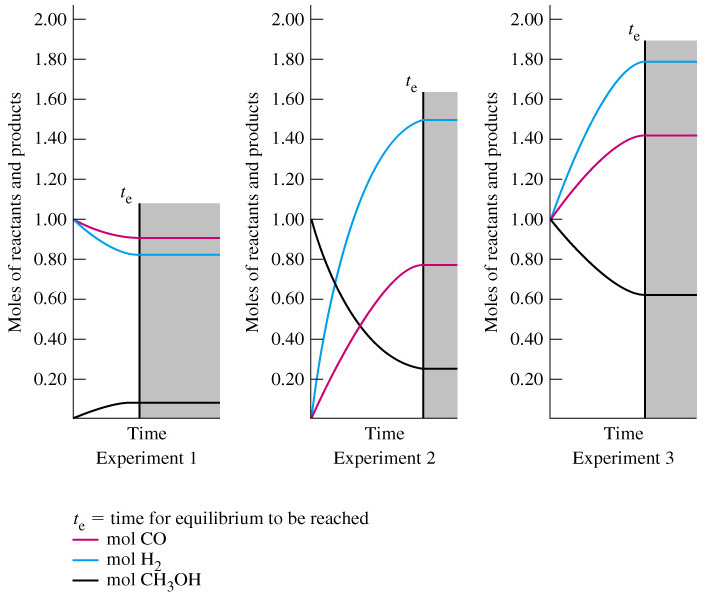

 Three approaches to equilibrium in the reaction CO(g) 1 2 H2(g) zy CH3OH(g). The initial and equilibrium amounts for each of these three cases are listed in Table 16.1. te 5 time for equilibrium to be reached.
Notes

16.4
Title
 16-4
Caption

Notes

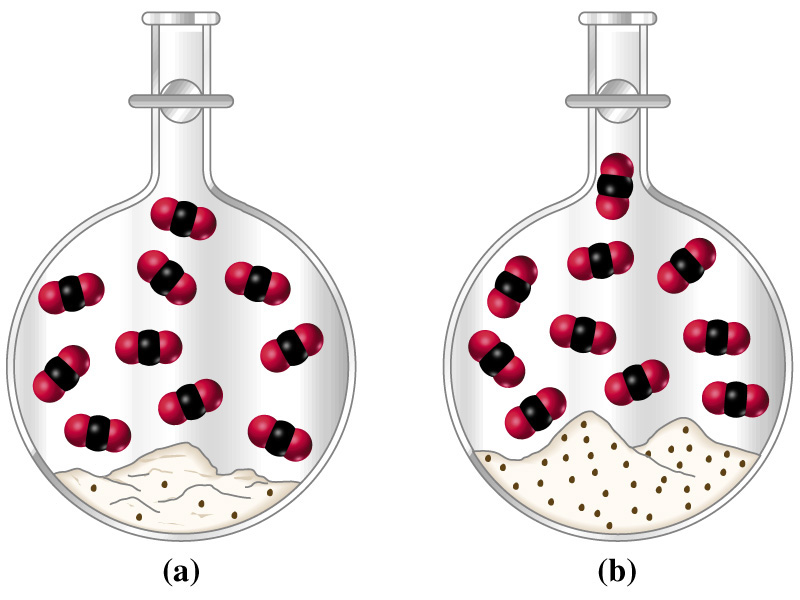

 Equilibrium in thre reactionÉ.
16.5
Title
 16-5
Caption

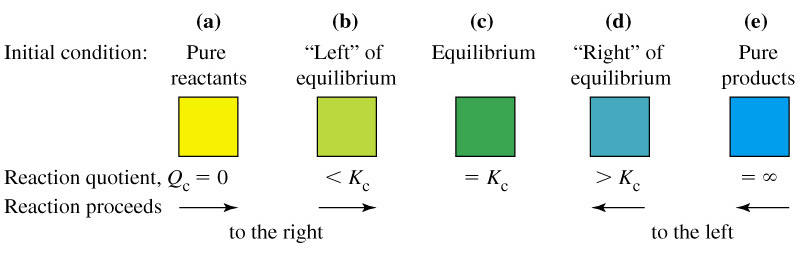

 Predicting the direction of net change in a reversible reaction. Five possibilities for the relationship of initial and equilibrium conditions are shown. From Table 16.1 and Figure 16-2, Experiment 1 corresponds to initial condition (a); Experiment 2 to condition (e); and Experiment 3 to (d). The situation in Example 16-5 also corresponds to condition (d).
Notes

16.6
Title
 16-6
Caption

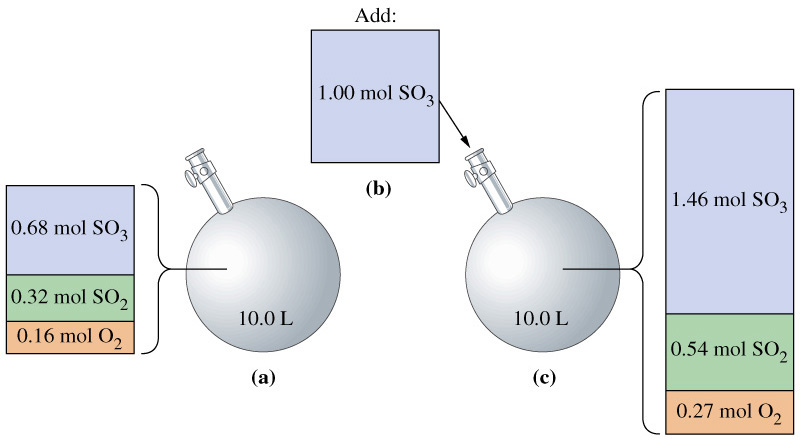

 Changing equilibrium conditions by changing the amount of a reactant 2 SO2(g) 1 O2(g) zy 2 SO3(g), Kc 5 2.8 3 102 at 1000 K. (a) The original equilibrium condition. (b) Disturbance caused by adding 1.00 mol SO3. (c) The new equilibrium condition (as calculated in Exercise 72). The amount of SO3 in the new equilibrium mixture (c), 1.46 mol, is greater than the original 0.68 mol (a), but it is not as great as immediately after the addition of 1.00 mol SO3 in (b), 1.68 mol. The effect of adding SO3 to an equilibrium mixture is partially offset when equilibrium is restored.
Notes

16.7
Title
 16-7
Caption

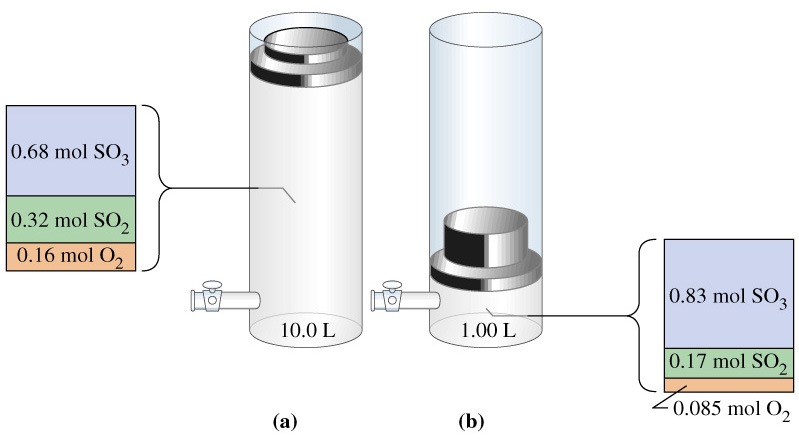

 Effect of pressure change on equilibrium in the reaction 2 SO2(g) 1 O2(g) zy 2 SO3(g). An increase in external pressure causes a decrease in the reaction volume and a shift in equilibrium “to the right.” (See Exercise 72 for a calculation of the new equilibrium amounts.)
Notes

16.8
Title
 16-8
Caption

Notes

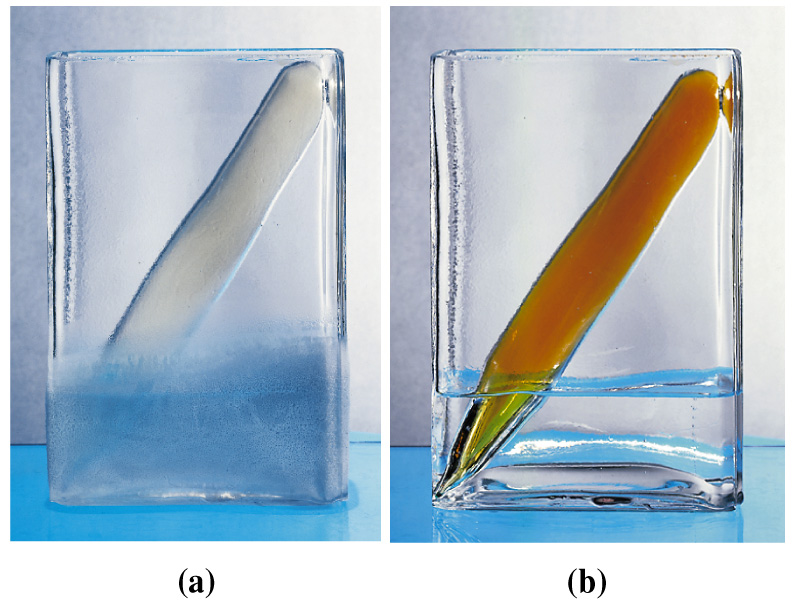

 The equilibrium N2O4(g)É
16.9
Title
 16-9
Caption

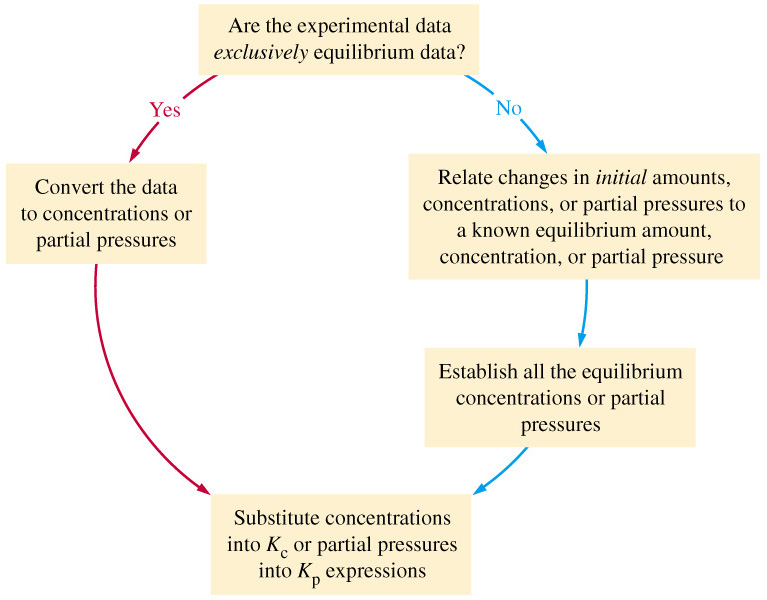

 Determining Kc or Kp from experimental data
Notes

16.10
Title
 16-10
Caption

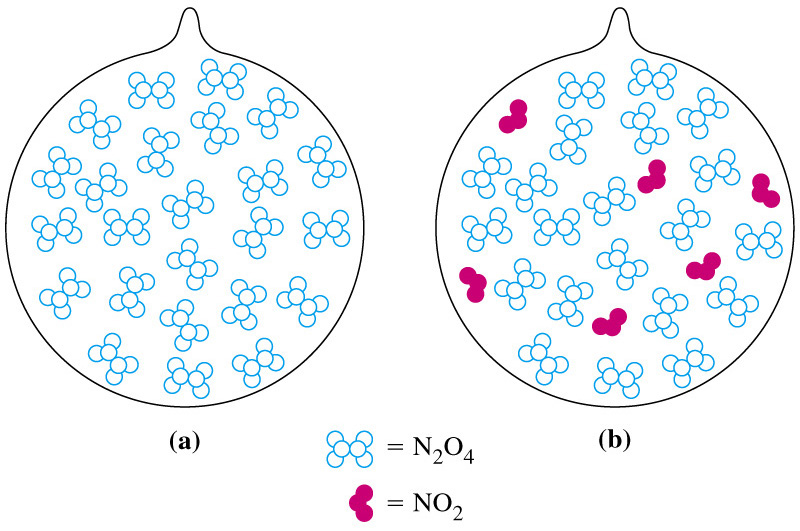

 Equilibrium in the reaction N2O4(g) zy 2 NO2(g) at 25 °C-Example 16-12 illustrated. Each “molecule” illustrated represents 0.001 mol. (a) Initially, the bulb contains 0.024 mol N2O4, represented by 24 “molecules.” (b) At equilibrium, some molecules of N2O4 have dissociated to NO2. The 21 “molecules” of N2O4 and 6 of NO2 correspond to 0.021 mol N2O4 and 0.006 mol NO2 at equilibrium
Notes

16.11
Title
 16-11
Caption

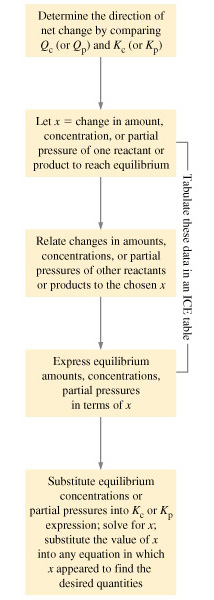

 Determining equilibrium concentrations or partial pressures
Notes

16.13
Title
 16-13
Caption

Notes

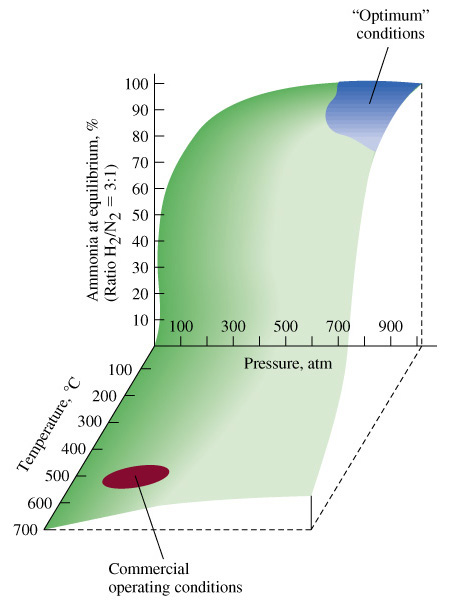

 Equilibrium conversion of N2(g) and H2(g)É.
P 628-3a
Title
 P 628-3a
Caption

Notes

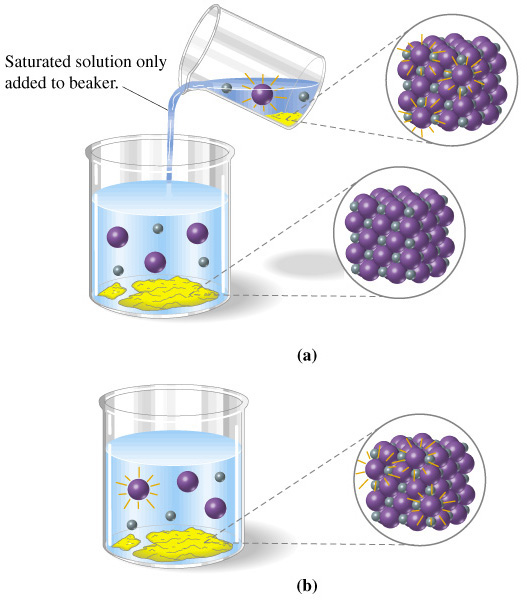

 Dissolution of NaCl in water
p 641-3
Title
 p 641-3
Caption

Notes
 Le Chatelier's principle
p 803-3
Title
 p 803-3
Caption

Notes
 Temperature dependence of equilibrium
p 922-3a
Title
 p 922-3a
Caption

Notes
 Dehydration of sugar
p 627-1a
Title
 p 627-1a
Caption

Notes
 Methanol as althernative to gasoline
P 630-1a
Title
 P 630-1a
Caption

Notes

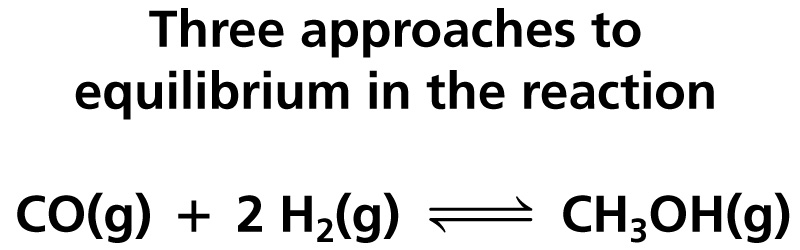

 Equilibrium concentration data from table 16.1
P 642-1
Title
 P 642-1
Caption

Notes

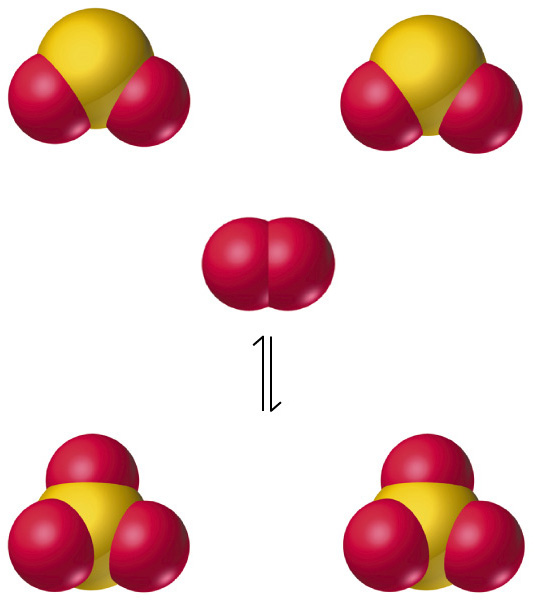

 2 SO2(g)+É.
P 646
Title
 P 646
Caption

Notes

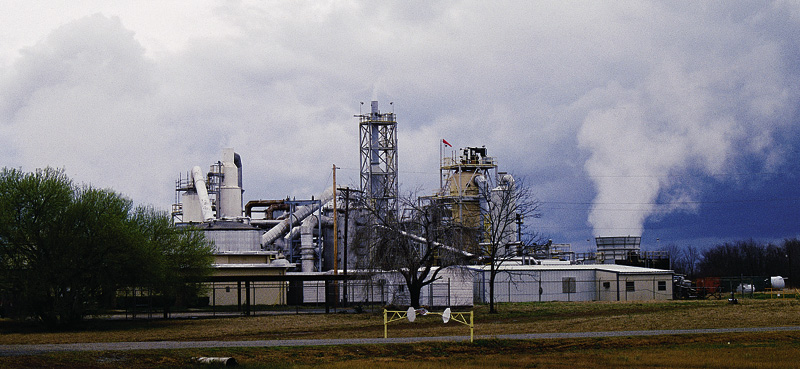

 Sulfuric acid is produced from SO3
P 647-1
Title
 P 647-1
Caption

Notes
 The Lewis structures of N2)4É.
P 656-1a
Title
 P 656-1a
Caption

Notes
 Use of liquid ammonia as a fertilizerÉ
P 657-1a
Title
 P 657-1a
Caption

Notes
 During electrical storms, N2(g)É.
P 660-1a
Title
 P 660-1a
Caption

Notes
 Diagram of two unequally sized bulbs joined
P 660-1
Title
 P 660-1
Caption

Notes
 Digram in 4 parts of mixtures
P 661-1
Title
 P 661-1
Caption

Notes
 Sketch of mixtures in 4 parts.
Table 16.1
Title
 Table 16.1
Caption

Notes
 Three approaches to equilibrium in the reactionÉ.
Table 16.3
Title
 Table 16.3
Caption

Notes
 Equilibrium constants of some common reactions
