Chapter 28
Chemistry of the Living State



Movie
Title
 p 1135-3
Caption
 This animation illustrates some properties of proteins amino acids.
Notes
 Proteins and amino acids. The primary structure of a protein is its sequence of amino acids. The secondary structure of a protein is stabilized by hydrogen bonds between the carboxyl oxygens and the amide hydrogens of peptide groups. Free amino acids exist in their ionized forms in neutral solution. All amino acids except glycine have 4 different groups around the alpha carbon making them optically active. Only L amino acids are found in proteins.
Movie
Title
 p 1135-3
Caption
 The concept of chirality is illustrated in this animation.
Notes
 A chiral object is not superimposable on its mirror image. A carbon atom with four different groups is chiral so it cannot be superimposed on its mirror image. Two chiral isomers are called enantiomers and are designated as either the R or the S isomer. Enantiomers have similar physical properties but behave differently in chiral environments. Many molecules have more than one chiral carbon atom.
Movie
Title
 movie
Caption
 The various types of isomerism are demonstrated in this animation.
Notes
 Isomers are compounds that have the same chemical formula but different structural formulas. Configurational (structural) isomers differ in the locations of bonds or groups in the molecule. Stereoisomers have the same groups of atoms bonded to each other but differ in the spatial arrangements of the atoms. Geometrical (cis-trans) isomers and optical isomers are stereoisomers.
Movie
Title
 movie
Caption
 Animation showing the design and operation of a polarimeter.
Notes
 Nonpolarized light has its electric vectors vibrating in all planes. A polarizer allows only light vibrating in a single plane to pass through it. An analyzer is used to determine if the polarized light has been rotated. An achiral solution has no effect on the plane of polarization of the light. A solution containing an excess of one enantiomer of a chiral substance causes rotation of the plane of polarization of the light.
28.1
Title
 28-1
Caption

Notes

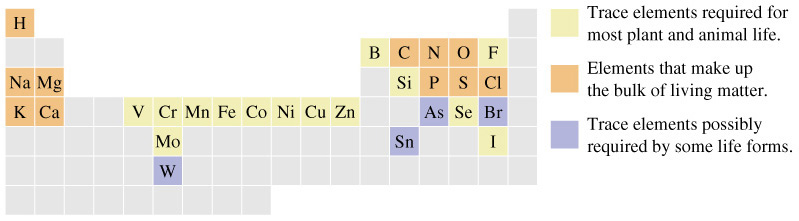

 Elements in living matter
28.2
Title
 28-2
Caption

Notes

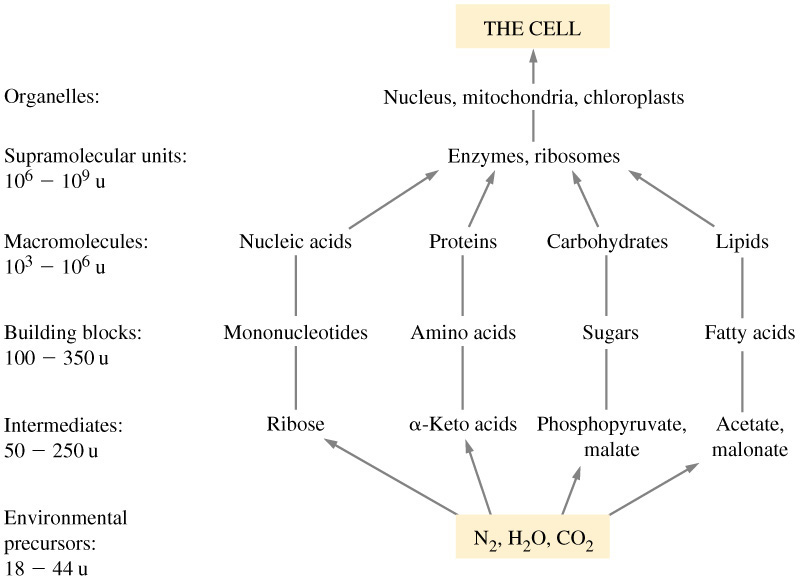

 cellular organization
28.3
Title
 28-3
Caption

Notes

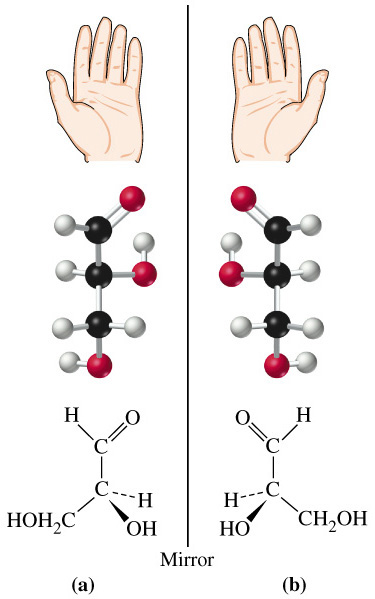

 optical isomeers of glyceraldehyde

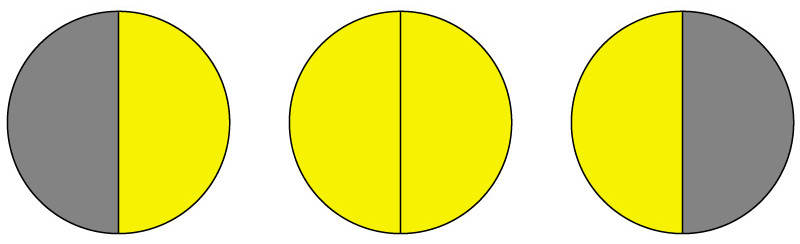

28.4
Title
 28-4
Caption

Notes
 view through the analyzer prism of a polarimeter
28.5
Title
 28-5
Caption

Notes

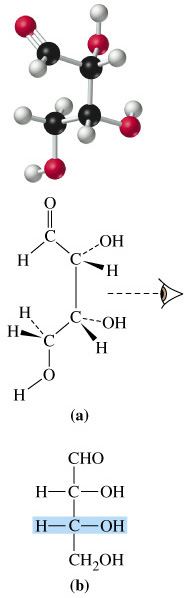

 The structure of D-(-)-erythrose
28.6
Title
 28-6
Caption

Notes

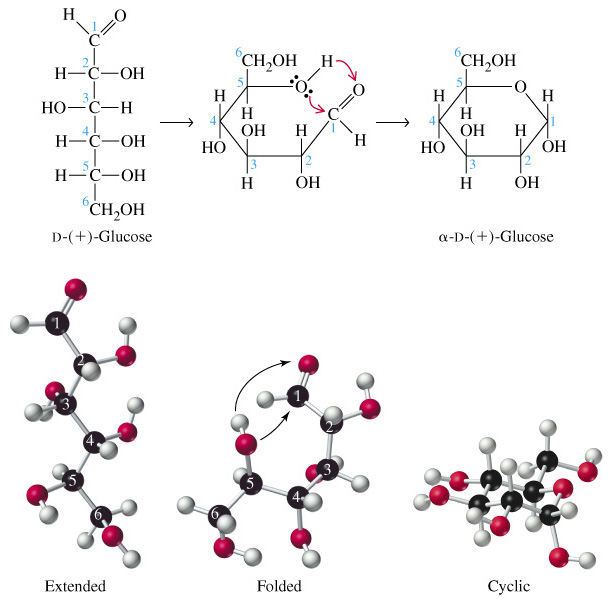

 Representation of ring closure in glucose molecule

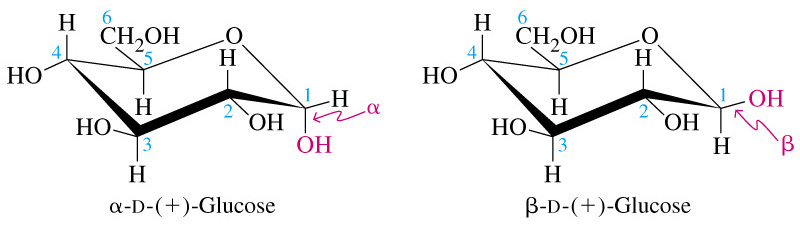

28.7
Title
 28-7
Caption

Notes
 alpha and beta forms of D glucose
28.8
Title
 28-8
Caption

Notes

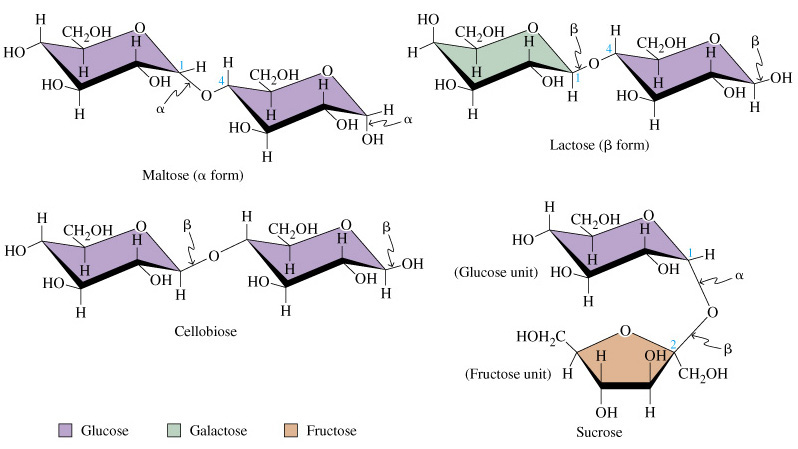

 some common disaccharides
28.9
Title
 28-9
Caption

Notes
 Two common polysaccharides
28.2
Title
 28-2
Caption

Notes
 Experimental determination of amino acid sequence
28.11
Title
 28-11
Caption

Notes

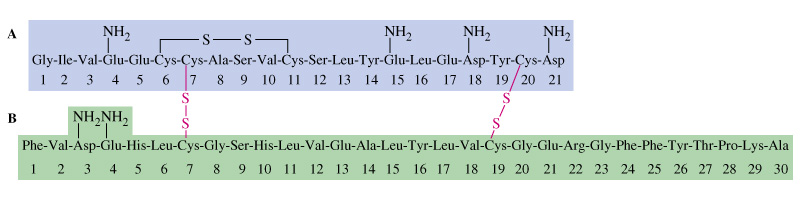

 Amino acid sequence in beef insulin
28.12
Title
 28-12
Caption

Notes

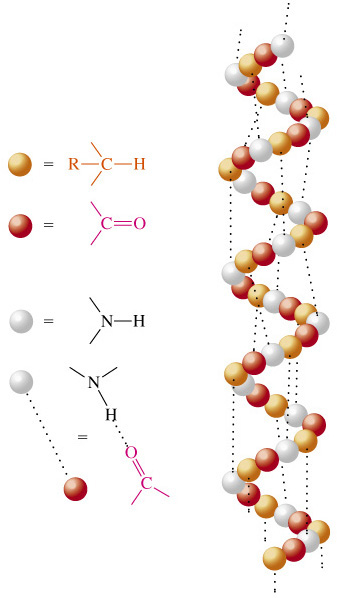

 Secondary structure of a protein-an helix
28.13
Title
 28-13
Caption

Notes

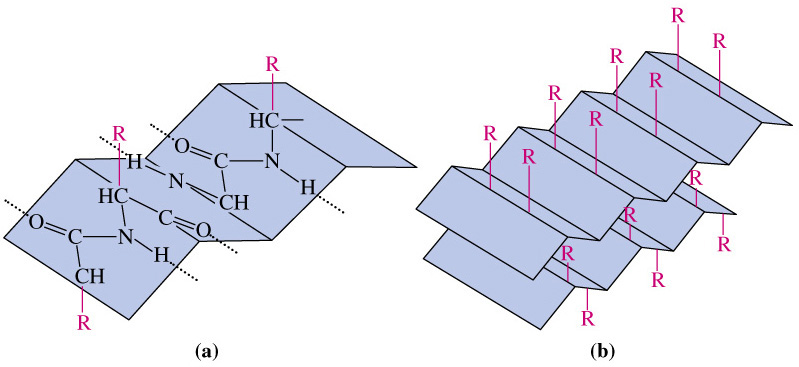

 Pleated-sheet model of beta-keratin
28.14
Title
 28-14
Caption

Notes

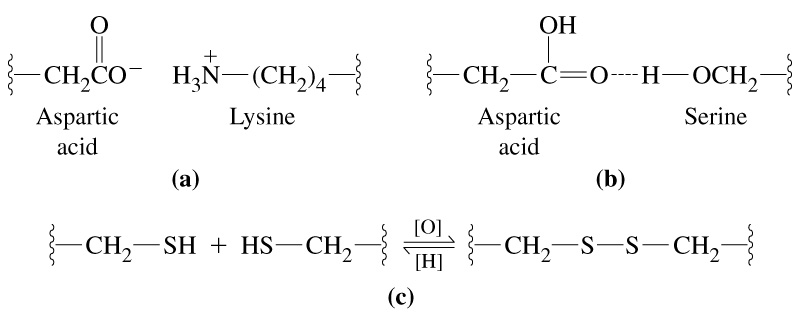

 Linkages contributing to the tertiary sturcture of proteins
28.15
Title
 28-15
Caption

Notes

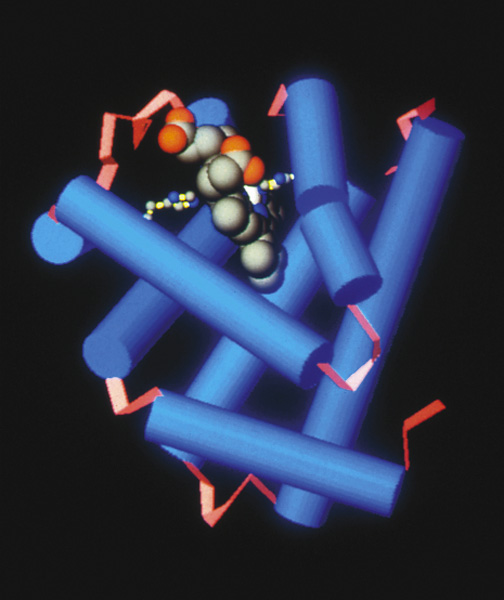

 Representation of the tertiary structure of myglobin
28.16
Title
 28-16
Caption

Notes

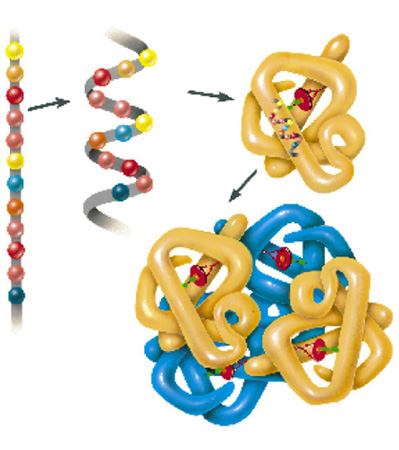

 The four levels of protein structure
28.17
Title
 28-17
Caption

Notes

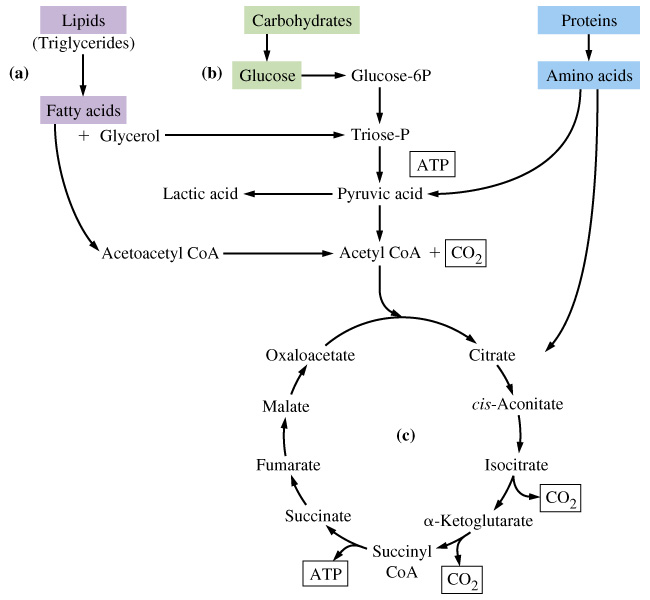

 metabolism outline
28.18
Title
 28-18
Caption

Notes

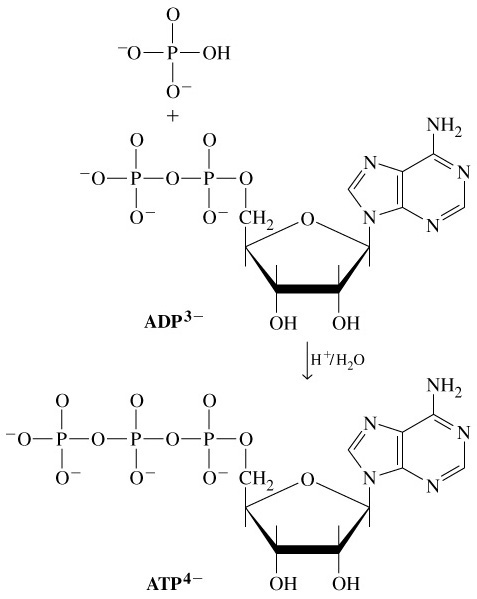

 Converstion of ADP to ATP
28.19
Title
 28-19
Caption

Notes

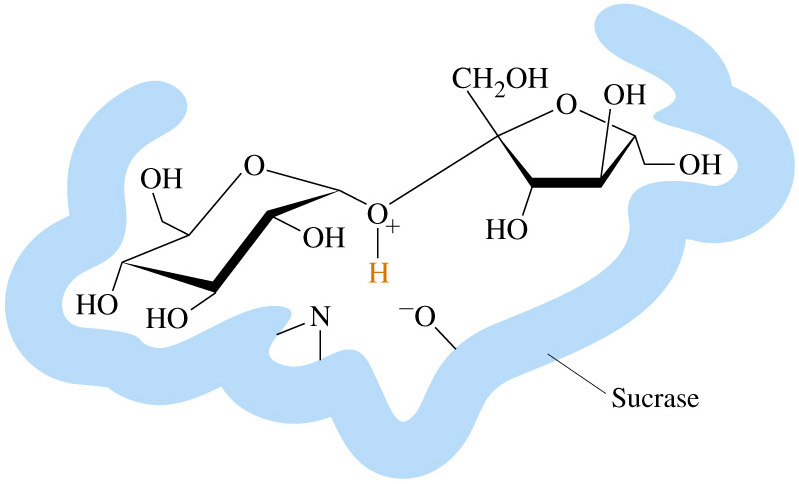

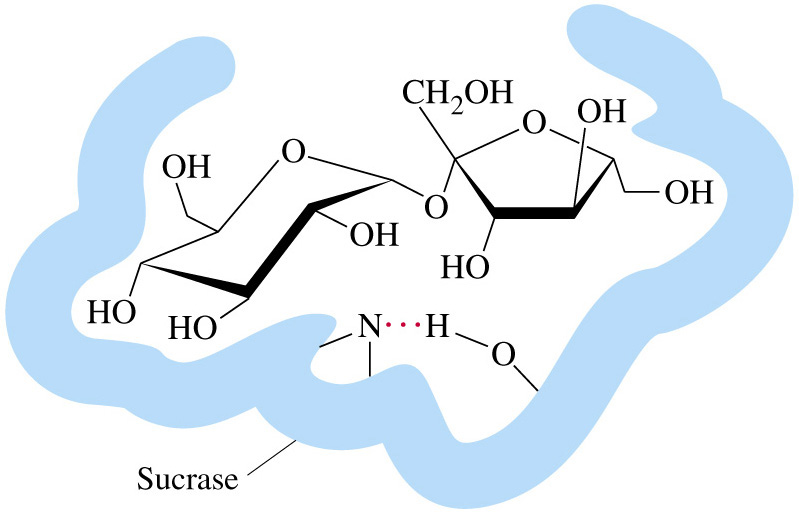

 Sucrase binding a scrose molecule
28.20
Title
 28-20
Caption

Notes
 Change in enzyme conformation after binding of substrate

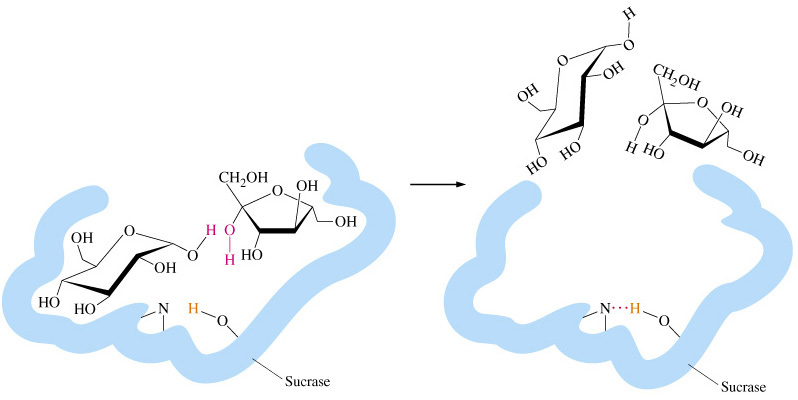

28.21
Title
 28-21
Caption

Notes
 Completion of the enzyme-catzlyzed reaction
28.22
Title
 28-22
Caption

Notes

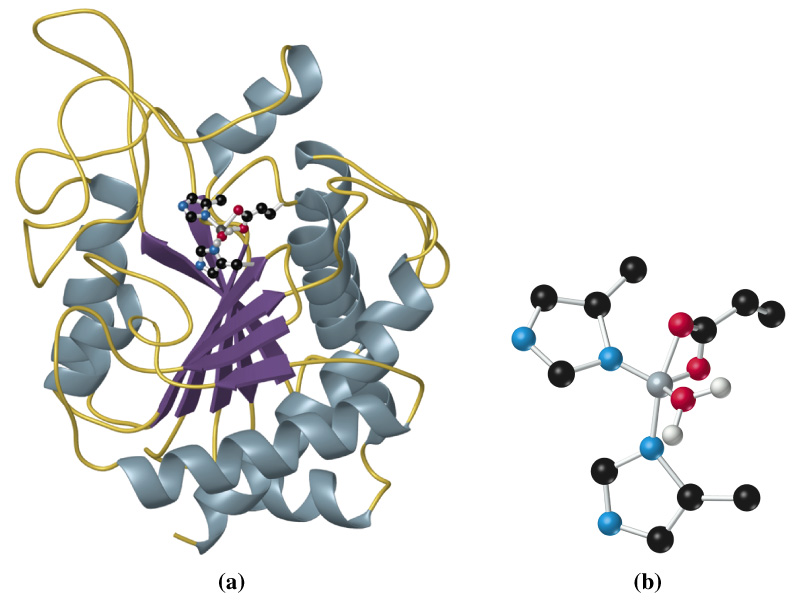

 structure of carboxypeptidase
28.23
Title
 28-23
Caption

Notes

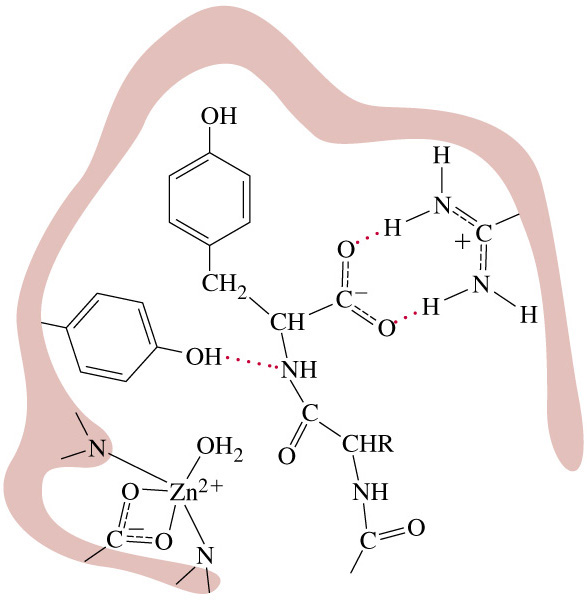

 Binding of protein to the active site of carboxypeptidase
28.24
Title
 28-24
Caption

Notes

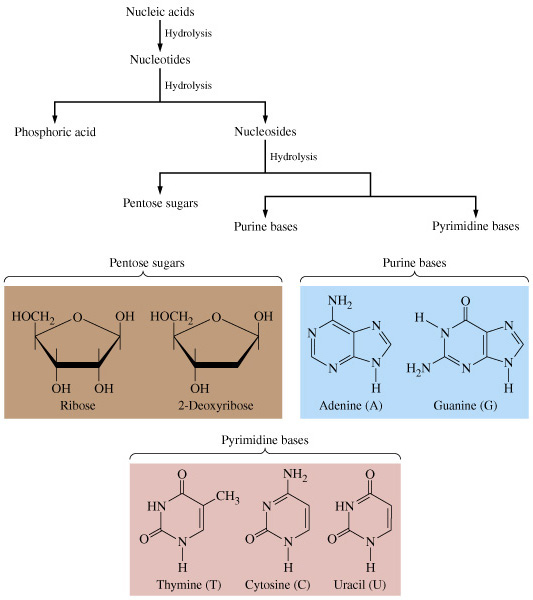

 Constituents of nucleic acids
28.25
Title
 28-25
Caption

Notes

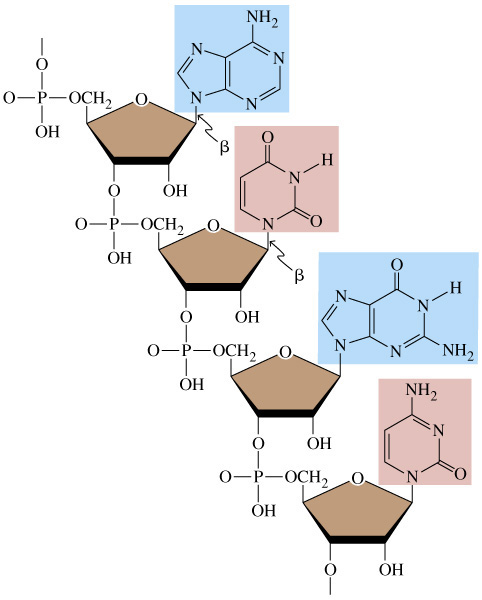

 A protion of a nucleic acid chain
28.26
Title
 28-26
Caption

Notes

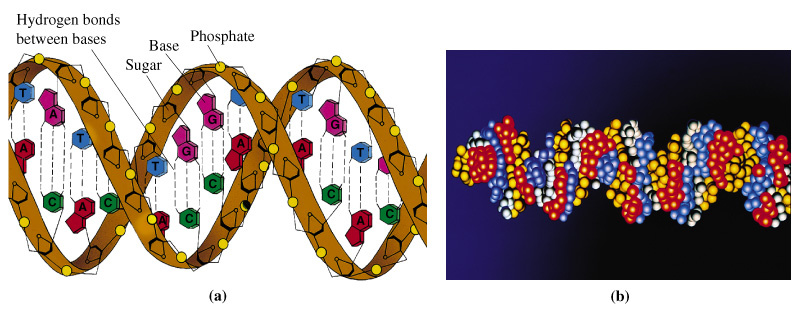

 DNA model
28.27
Title
 28-27
Caption

Notes

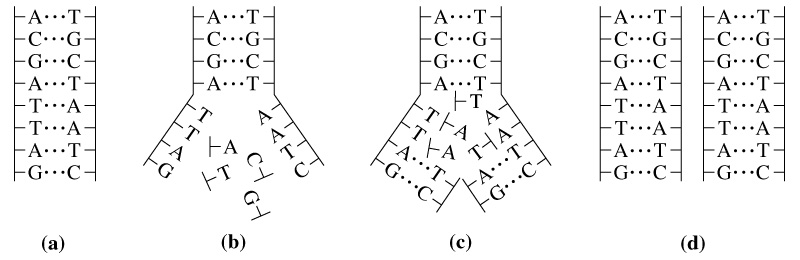

 Replciation of a DNA molecule
28.28
Title
 28-28
Caption

Notes

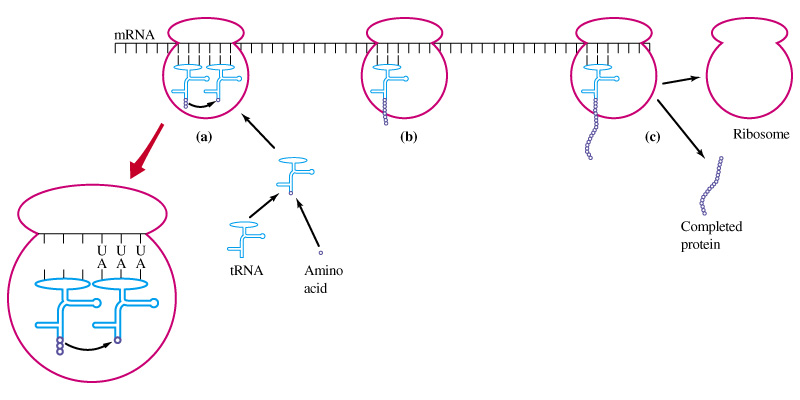

 Protein synthesis

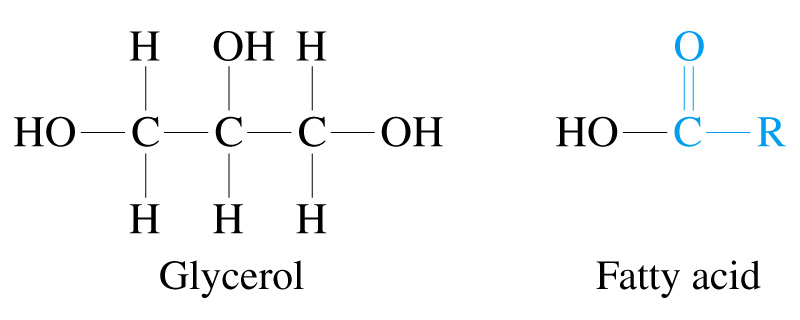

p 1124-1
Title
 p 1124-1
Caption

Notes

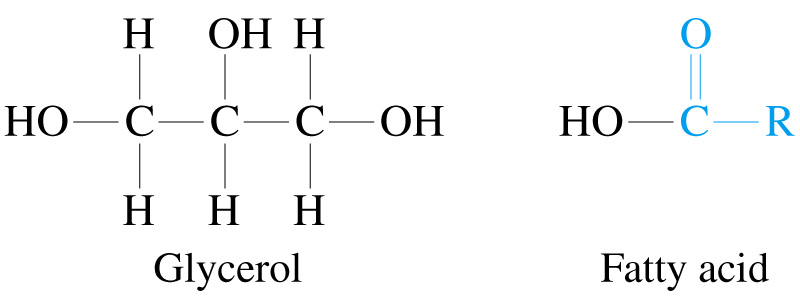

 Glyerol and fatty acid

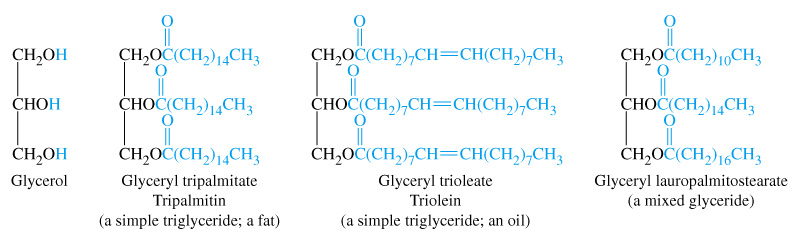

p 1124-1a
Title
 p 1124-1a
Caption

Notes
 Glycerol tripalmitate, glycerol tiroleate and glycerol lauropalmitostearate
p 1125-1
Title
 p 1125-1
Caption

Notes

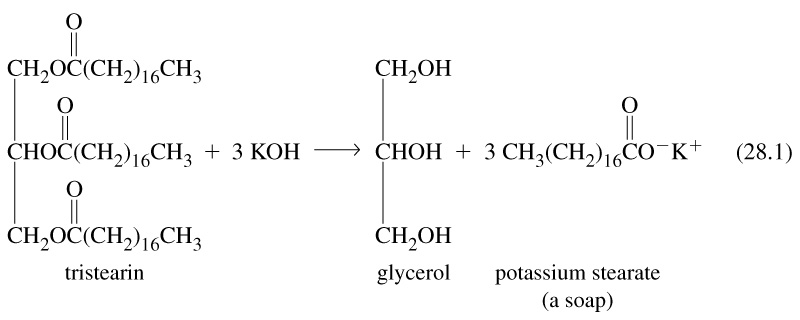

 Tristerarin, glycerol and potassium stearate
p 1125-1a
Title
 p 1125-1a
Caption

Notes

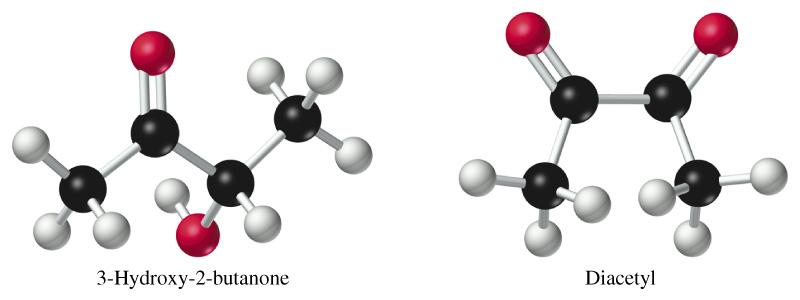

 3-hydrocy-2-butanone and diacetly
p 1126-1
Title
 p 1126-1
Caption

Notes

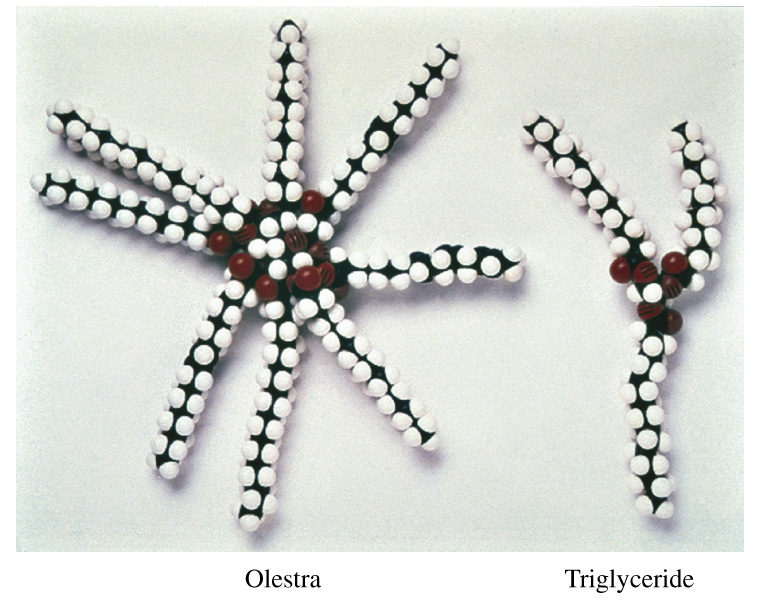

 olestra and triglyceride
p 1126-1a
Title
 p 1126-1a
Caption

Notes
 corn oil photo
p 1127-1
Title
 p 1127-1
Caption

Notes

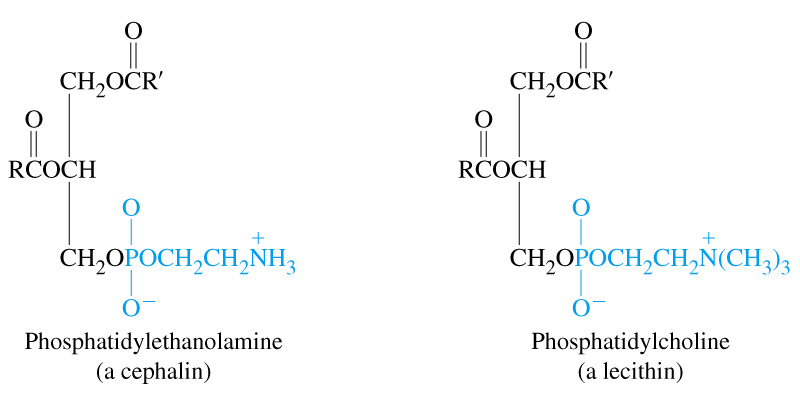

 phosphatidylethanolamine and phosphatidylcholine
p 1127-1a
Title
 p 1127-1a
Caption

Notes
 a cell membrane
p 1127-1b
Title
 p 1127-1b
Caption

Notes
 glocose and fructose
p 1129-1
Title
 p 1129-1
Caption

Notes

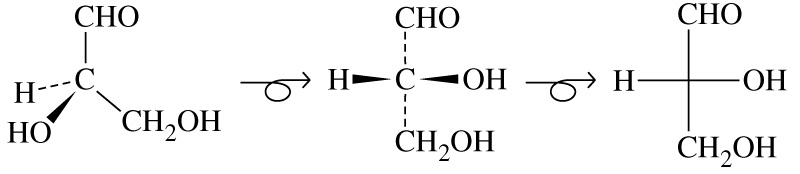

 Ficher projections
p 1130-1
Title
 p 1130-1
Caption

Notes

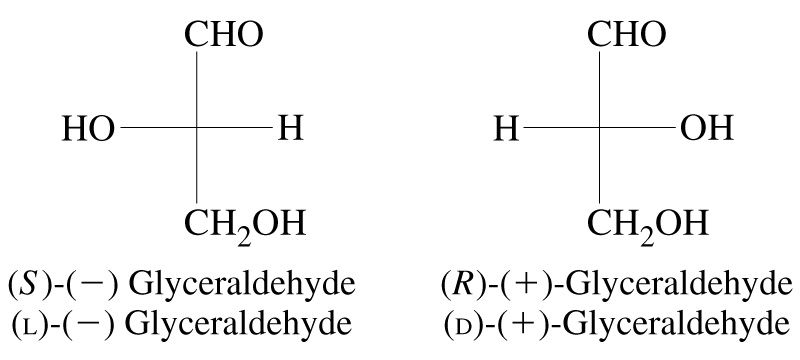

 S and R L and D glyceraldehyde
p 1130-1a
Title
 p 1130-1a
Caption

Notes
 D and L Erythrose and threose
p 1130-1b
Title
 p 1130-1b
Caption

Notes
 D erythrose and Threose
p 1130-1c
Title
 p 1130-1c
Caption

Notes
 photo of Emil Fischer
p 1133-1
Title
 p 1133-1
Caption

Notes

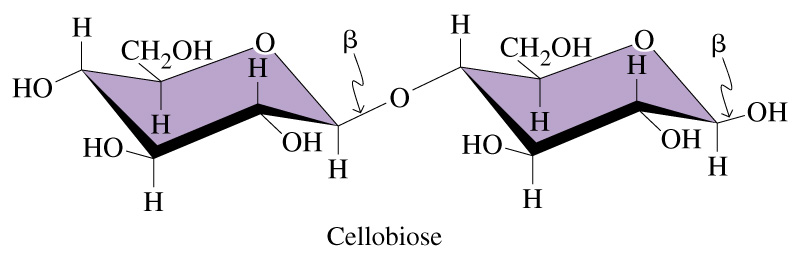

 cellobiose
p 1135-1a
Title
 p 1135-1a
Caption

Notes
 an L-amino acid
p 1136-1
Title
 p 1136-1
Caption

Notes

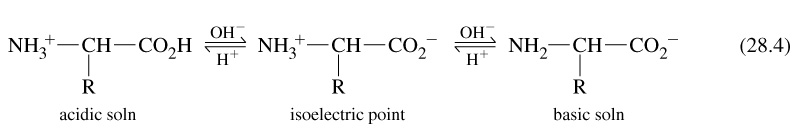

 Acid to basic solution
p 1137-1
Title
 p 1137-1
Caption

Notes

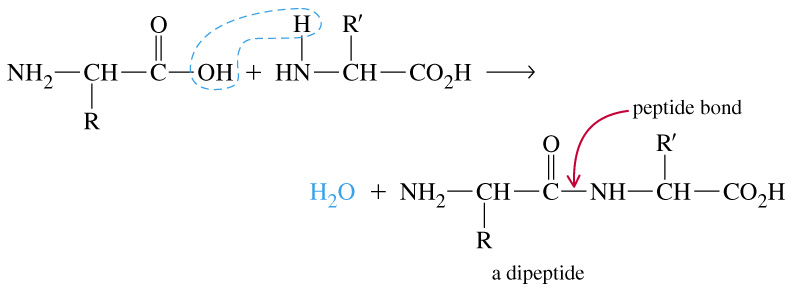

 peptide bond formation
p 1137-1a
Title
 p 1137-1a
Caption

Notes
 naming a polypeptide
p 1142-1
Title
 p 1142-1
Caption

Notes
 missing no name

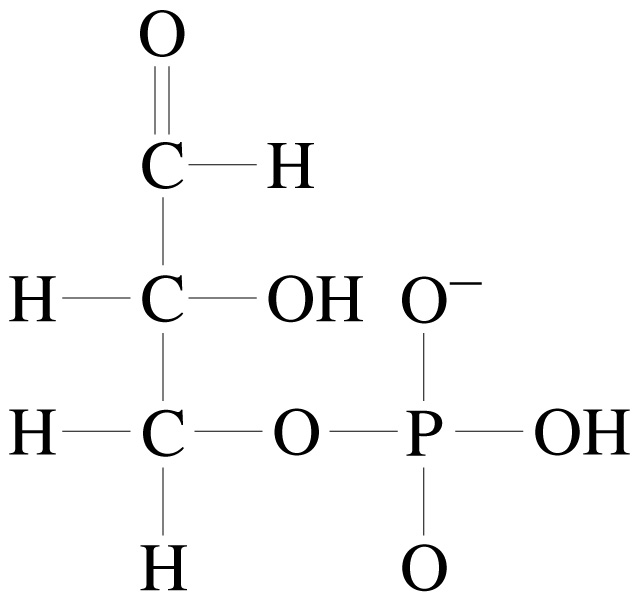

p 1144-1
Title
 1144-1
Caption

Notes
 The structure of glyceralde-hyde-3-phosphate
p 1144-1a
Title
 p 1144-1a
Caption

Notes
 ADP/ATP conversion
p 1145-1
Title
 p 1145-1
Caption

Notes

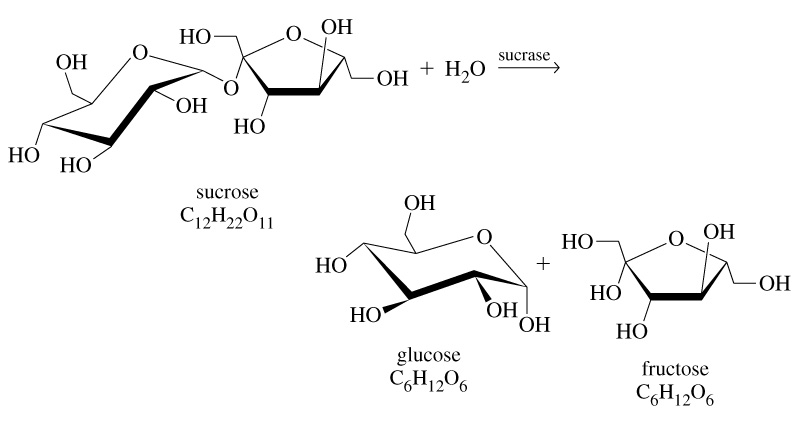

 Hydrolysis of sucrose
p 1147-1
Title
 p 1147-1
Caption

Notes

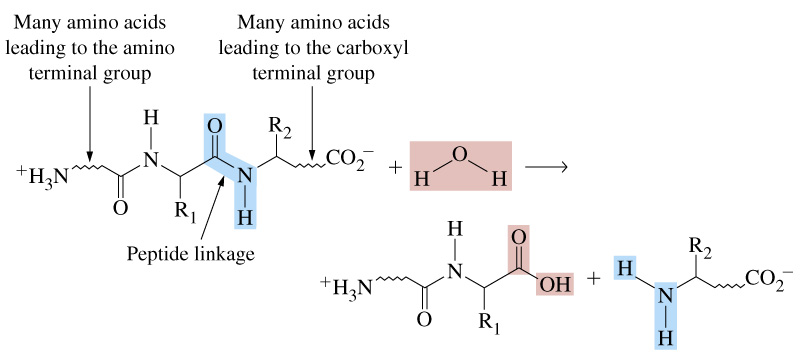

 peptide linkage being broken
p 1152-1
Title
 p 1152-1
Caption

Notes

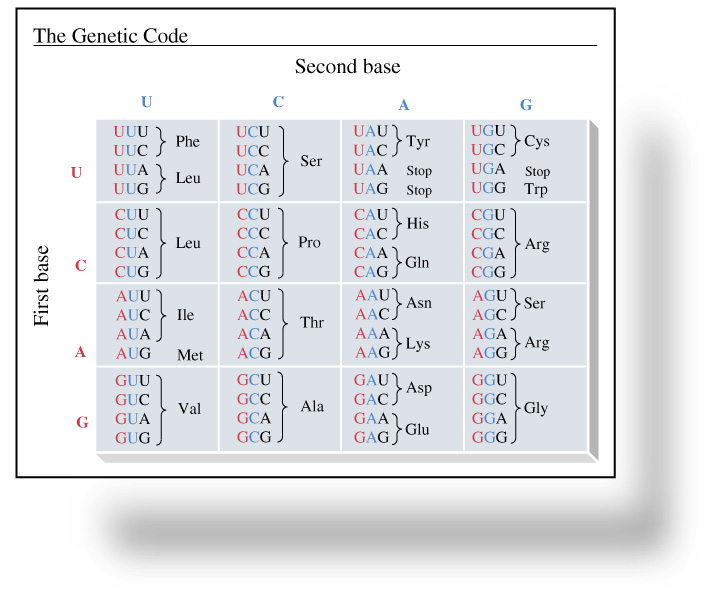

 the genetic code
p 1154-1a
Title
 p 1154-1a
Caption

Notes
 Structure of L-threonine
p 1154-1b
Title
 p 1154-1b
Caption

Notes

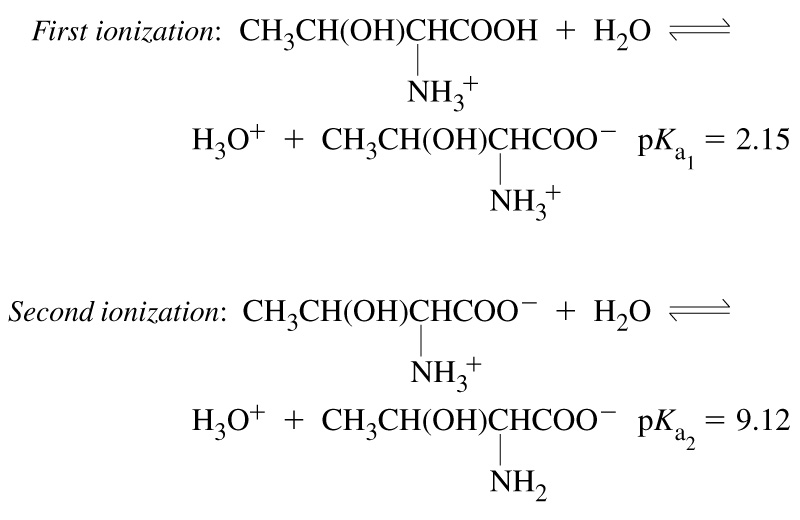

 problem 1
p 1154-1b
Title
 p 1154-1b
Caption

Notes
 problem 2
p 1155-1a
Title
 p 1155-1a
Caption

Notes
 problem 4
p 1155-1b
Title
 p 1155-1b
Caption

Notes
 problem 5

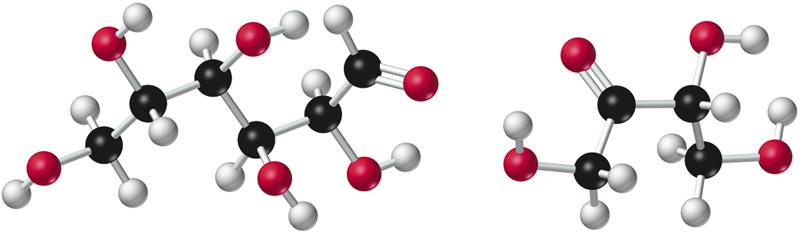

p 1156-1
Title
 p 1156-1
Caption

Notes
 problem 23
P 1157-1a
Title
 P 1157-1a
Caption

Notes
 problem 31
P 1157-1b
Title
 P 1157-1b
Caption

Notes
 problem 32
P 1157-1c
Title
 P 1157-1c
Caption

Notes
 problem 33
P 1157-1d
Title
 P 1157-1d
Caption

Notes
 problem 34

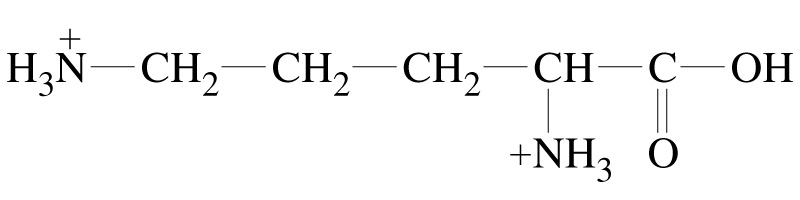

p 1159-1
Title
 p 1159-1
Caption

Notes
 problem 60
p 1160-1
Title
 p 1160-1
Caption

Notes

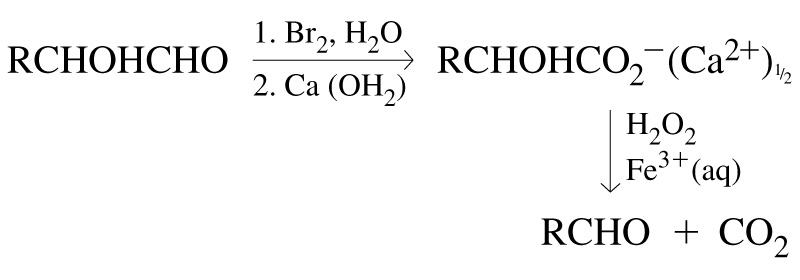

 problem 71
Table 28.1
Title
 Table 28.1
Caption

Notes
 Some common fatty acids
Table 28.2
Title
 Table 28.2
Caption

Notes
 some common fats and oils
Table 28.3
Title
 Table 28.3
Caption

Notes
 Some common amino acids
